Product Details
Place of Origin: China
Brand Name: Chanhong XiangLong
Model Number: TAZGFWF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: 5-8 workdays
Supply Ability: 1 set per 15-20days
Material: |
Titanium Alloy |
Size: |
Customized |
Height: |
220-900mm |
Warranty: |
1 Year |
Frequency: |
50/60Hz |
Voltage: |
220V/380V/440V |
Power: |
Electric |
Material: |
Titanium Alloy |
Size: |
Customized |
Height: |
220-900mm |
Warranty: |
1 Year |
Frequency: |
50/60Hz |
Voltage: |
220V/380V/440V |
Power: |
Electric |
type |
L/Rev |
Stucural dimensions(mm) | r/min |
Motor power (KW) |
||||||||
ΦA | ΦB | ΦC | E | F | M | N | H | n-Φ | ||||
BZGFWF-80 | 1L | 80 | 160 | 200 | 180 | 500 | 220 | 4-Φ18 | 1-50 | 0.2- | ||
BZGFWF-100 | 2L | 100 | 180 | 220 | 200 | 520 | 250 | 8-Φ18 | 1-50 | 0.4- | ||
BZGFWF-150 | 4L | 150 | 240 | 285 | 210 | 550 | 580 | 540 | 320 | 8-Φ22 | 1-50 | 0.75- |
BZGFWF-200 | 8L | 200 | 295 | 340 | 240 | 590 | 620 | 590 | 370 | 8-Φ22 | 10-50 | 0.75- |
BZGFWF-250 | 16L | 250 | 350 | 395 | 270 | 630 | 680 | 640 | 430 | 12-Φ22 | 10-50 | 1.5- |
BZGFWF-300 | 25L | 300 | 400 | 445 | 300 | 660 | 720 | 680 | 490 | 12-Φ22 | 10-32 | 1.5- |
BZGFWF-350 | 40L | 350 | 460 | 505 | 330 | 700 | 780 | 730 | 550 | 16-Φ22 | 10-32 | 2.2- |
BZGFWF-400 | 60L | 400 | 515 | 565 | 360 | 740 | 840 | 780 | 600 | 16-Φ24 | 10-24 | 2.2- |
BZGFWF-450 | 80L | 450 | 565 | 615 | 400 | 770 | 900 | 830 | 660 | 20-Φ24 | 10-24 | 2.2- |
BZGFWF-500 | 110L | 500 | 620 | 670 | 430 | 800 | 1000 | 900 | 720 | 20-Φ24 | 10-24 | 3- |
BZGFWF-600 | 150L | 600 | 725 | 780 | 480 | 850 | 1100 | 980 | 780 | 20-Φ30 | 10-24 | 4- |
BZGFWF-700 | 200L | 700 | 840 | 895 | 530 | 900 | 1200 | 1080 | 900 | 24-Φ30 | 10-24 | 4- |
type |
Volume/rotation |
Motor model and power | speed | Temperature | Weight | Installationdimension | ||||||||
(KW) | R/min | (℃) | Kg | ΦA | ΦB | ΦC | A1 | B1 | C1 | H | E | n-Φ(mn) | ||
2L | 2L/r | 0.75 | 40 | 280 | 75 | 240 | 200 | 150 | 240*240 | 200 | 150*150 | 240 | 850 | 8-Φ13 |
4L | 4L/r | 0.75 | 40 | 280 | 105 | 280 | 240 | 180 | 270*270 | 230 | 180*180 | 280 | 900 | 8-Φ13 |
6L | 6L/r | 0.75 | 40 | 280 | 11 | 300 | 260 | 200 | 290*290 | 250 | 200*200 | 300 | 930 | 8-Φ13 |
8L | 8L/r | 0.75 | 40 | 280 | 125 | 320 | 280 | 220 | 310*310 | 270 | 220*200 | 320 | 950 | 8-Φ13 |
10L | 10L/r | 1.1 | 40 | 280 | 135 | 340 | 300 | 240 | 340*340 | 300 | 240*240 | 340 | 1000 | 8-Φ13 |
12L | 12L/r | 1.1 | 40 | 280 | 140 | 360 | 320 | 260 | 350*350 | 310 | 260*260 | 360 | 1030 | 8-Φ17 |
14L | 14L/r | 1.1 | 40 | 280 | 160 | 380 | 340 | 280 | 370*370 | 330 | 280*280 | 380 | 1050 | 8-Φ17 |
16L | 16L/r | 1.5 | 40 | 280 | 180 | 400 | 360 | 300 | 400*400 | 350 | 300*300 | 400 | 1080 | 8-Φ17 |
18L | 18L/r | 1.5 | 40 | 280 | 195 | 420 | 380 | 320 | 420*420 | 370 | 320*320 | 420 | 1100 | 8-Φ17 |
20L | 20L/r | 1.5 | 40 | 280 | 210 | 440 | 400 | 340 | 440*440 | 390 | 340*340 | 465 | 1150 | 8-Φ17 |
26L | 26L/r | 2.2 | 24 | 280 | 310 | 500 | 460 | 400 | 510*510 | 450 | 400*400 | 520 | 1300 | 12-Φ17 |
30L | 30L/r | 3 | 24 | 280 | 350 | 560 | 500 | 440 | 550*550 | 495 | 440*440 | 550 | 1350 | 12-Φ17 |
40L | 40L/r | 3 | 24 | 280 | 450 | 620 | 558 | 500 | 620*620 | 558 | 500*500 | 620 | 1500 | 12-Φ17 |
50L | 50L/r | 3 | 24 | 280 | 500 | 650 | 600 | 540 | 650*650 | 600 | 540*540 | 650 | 1600 | 12-Φ17 |

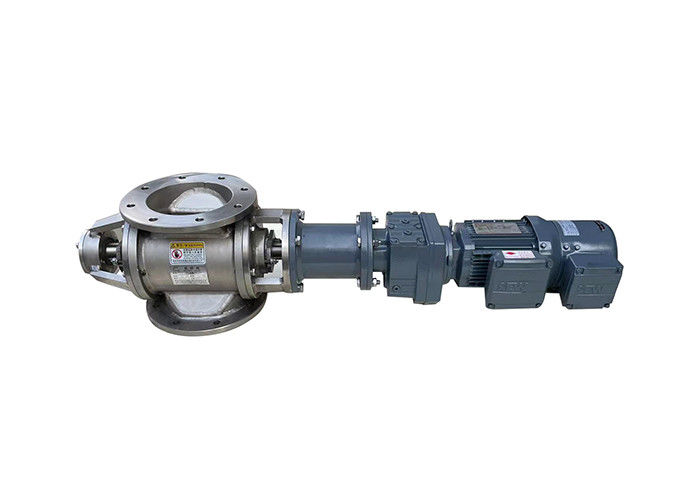

Rotary Feeder Valve is an industrial equipment designed for low pressure and variable speed applications. It is composed of stainless steel structure with rotary control valve and air lock valve. By using rotary feeder, it is possible to precisely control the flow of material, ensuring efficient and accurate feeding. With its wide range of frequency (50/60Hz), it is suitable for different types of industrial processes. The rotary valve can be used for a variety of applications, such as air-conditioning, water treatment, pharmaceutical and chemical production, food processing, etc.
Rotary Feeder Valve is durable and reliable due to its robust design and material. It is easy to install, maintain and operate, thus offering optimal performance with minimum maintenance. The rotary valve provides precise control and high accuracy, ensuring the reliable operation of the system. Moreover, its design also ensures low energy consumption, thus reducing operating costs.
Property | Value |
---|---|
Volume | 1L-200L/rev |
Power | Electric |
Voltage | 220V/380V/440V |
Speed | Variable Speed |
Temperature | Normal Temperature |
Diameter | 80-700mm |
Pressure | Low Pressure |
Material | Stainless Steel |
Size | Customized |
Height | 220-900mm |
The Chanhong Xianglong Rotary Feeder Valve is a reliable and cost-effective rotary control valve designed and manufactured to ensure maximum efficiency and safety. It is made from high quality stainless steel and is designed to withstand low pressure. The valve is powered by electricity and is backed by a 1-year warranty. It is designed to provide maximum efficiency and safety in any application, and is a popular choice for rotolok rotary valve applications.
The Chanhong Xianglong Rotary Feeder Valve is designed to be reliable, durable, and efficient. It has been designed and manufactured to ensure maximum safety and efficiency. It is made from high-quality stainless steel and is designed to withstand low pressure. The valve is powered by electricity and is backed by a 1-year warranty.
The Chanhong Xianglong Rotary Feeder Valve is a reliable and cost-effective rotary control valve. It is designed to provide maximum efficiency and safety in any application, and is a popular choice for rotolok rotary valve applications. It is made from high-quality stainless steel and is designed to withstand low pressure. The valve is powered by electricity and is backed by a 1-year warranty.
The Chanhong Xianglong Rotary Feeder Valve is the perfect choice for applications that require a reliable, cost-effective rotary control valve. It is designed to provide maximum efficiency and safety in any application, and is a popular choice for rotolok rotary valve applications. It is made from high-quality stainless steel and is designed to withstand low pressure. The valve is powered by electricity and is backed by a 1-year warranty.
The Chanhong Xianglong Rotary Feeder Valve is an ideal choice for any rotary control valve application. It is made from high-quality stainless steel and is designed to withstand low pressure. The valve is powered by electricity and is backed by a 1-year warranty. It is designed to provide maximum efficiency and safety in any application, and is a popular choice for rotolok rotary valve applications.
Chanhong Xianglong is your one-stop solution for rotary feeder valve needs. Our Rotary Feeder Valves are designed and engineered to meet your specific application requirements.
Our Rotolok Rotary Valve, Rotary Airlock Valve and Rotary Feeder Valve are reliable, sturdy and have been designed to provide high-performance in a wide range of industrial applications.
We provide technical support and services for Rotary Feeder Valves. Our technical support team is trained to answer any questions and provide solutions to any issues related to Rotary Feeder Valves. We offer 24/7 customer support and can quickly respond to any queries. Additionally, our team can provide installation and maintenance services for Rotary Feeder Valves.
Rotary Feeder Valve Packaging and Shipping:
We package the Rotary Feeder Valve in durable corrugated boxes with foam inserts to ensure it is delivered safely to our customers. We ship the valve by air or sea freight depending on the customer's requirements.
